Wall Mount Solutions

Home > Wall Mount Solutions > Commercial Cabinets

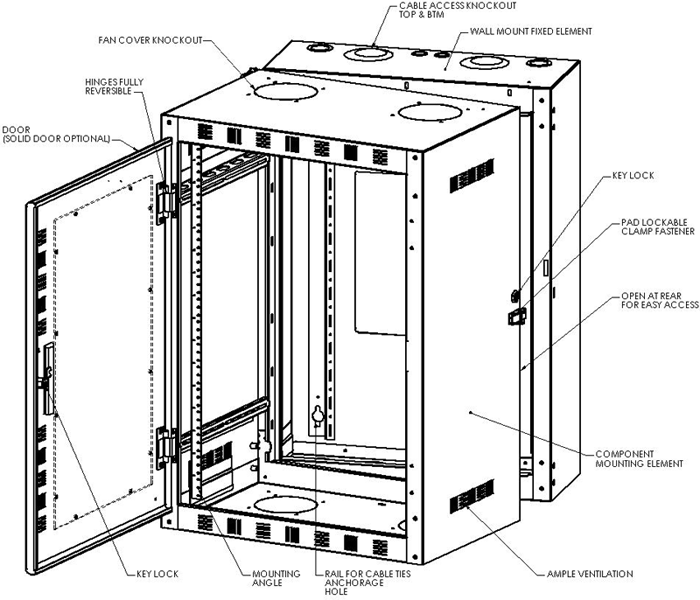

Wall Mount - Commercial Cabinets

Product Features:

Finish

  • Durable black textured powder paint finish



Structure

  • Frame constructed of 16 GA (0.060”) steel, modular construction

  • Commercial wall mount cabinets are ideal for small and medium sized networks, and are designed for office type environments

  • Key lockable hinged body for rear access

  • Built-in 19” EIA standard 10-32 tapped mounting angles

  • All cabinets come standard with key lockable, lexan-windowed door

  • Knock-out feature on top, set distance from the wall to allow for unistrut-mounted conduit

  • Laser knock-out in rear body

  • Ventilated unit for thermal management

  • Pad-lockable rear body

  • Swing direction can be reversed while rear body remains affixed to the wall
    Click here for Door Reversal Instructions

  • Ground studs on front door & back body



Options

  • Available in 11, 16 or 23 U-space

  • Horizontal cable management options available, see section 4.2

  • Fans for thermal load management available. Optional filter kit is recommended where fans are used

  • LED Light

  • Extra mounting angles for 4 point mounting

  • Flat vertical manager for tying off cables

Standard Dimensions

CTCWH-4724-DSO-B
Shown Closed

CTCWH-2524-DSO-B
Shown Closed

CTCWH-2524-DSO-B
Shown Open

CTCWH-3424-DSO-B
Front View
Shown Closed

CTCWH-3424-DSO-B
Rear View
Shown Closed

CTCWH-3424-DSO-B
Shown Open

CTCWH-4724-DSO-B
Shown Open

Commercial Wall Mount Cabinets

7U Back-Panel Style Wall Mount Cabinet

Product Features:

Finish

  • Durable black textured powder paint finish



Structure

  • 7 U-Space

  • Left/Right reversible mounting cabinet by reversing cabinet on mounting plate

  • Solid front door

  • Key-lockable

  • Laser cut knock-outs for recessed pull box position

  • Back-plate attaches to wall separately, and then cabinet is mounted to back-plate

CTCWF-1516-BP-B
Shown Open and separate from the back-plate

Back Panel Wall Mount Cabinet
