CTCWH-2128-DDSO-B
CTCWH-2128-DDSO-B

Wall Mount - Industrial Cabinets

​Product Features:

​

Finish

  • Durable black textured powder paint finish



Structure

  • Frame constructed of 13 GA (0.090”) and 16GA (0.060”) steel, fully welded and rigid

  • Industrial wall mount cabinets are ideal for small and medium sized networks, and are designed for harsh conditions such as manufacturing facilities

  • All cabinets come standard with tinted Lexan-windowed door

  • Hinged body for rear access

  • Vertical cable management system included

  • Built-in 19” EIA standard 10-32 tapped mounting angles

  • Pad-lockable doors standard

  • Pad-lockable front and back compartments

  • Reversible swing with replacement hinges. Factory default to left-hand swing
    Click here for Door Reversal Instructions



Options

  • Available in 11 U-space or 23 U-space

  • Gasketing for NEMA/Harsh environment applications available. Gasketing is 1 piece extruded neoprene, attached by 3M heat sensitive adhesive

  • Flush-style key lockable doors available front and rear

  • Fans for thermal load management available. Optional filter kit is recommended

  • Card access doors available

  • Acoustic insulation for sound dampening

  • Cabinet extension for greater mounting depth

  • LED light

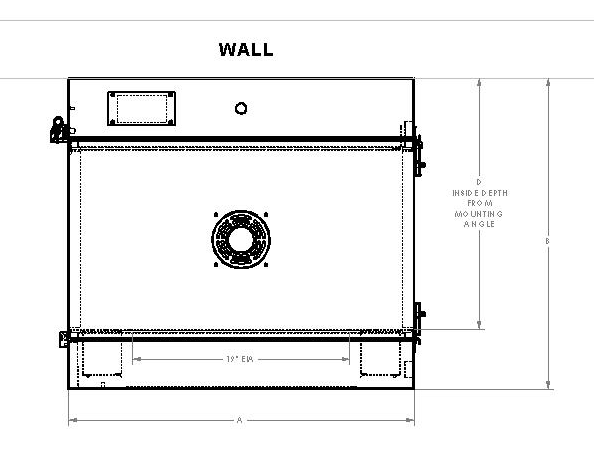

Standard Dimensions

2128 slant closed.png

CTCWH-2128-DDSO-B
Shown with Lexan door

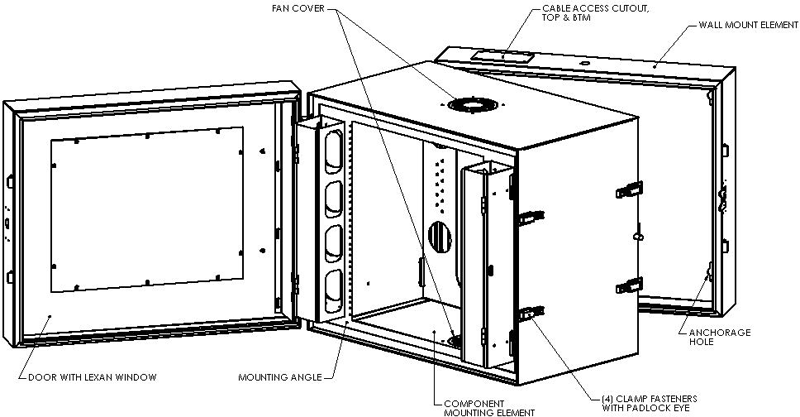

4428 open.png

CTCWH-4428-DDSO-B
Shown with Lexan door
