NEMA wit A/C Frame

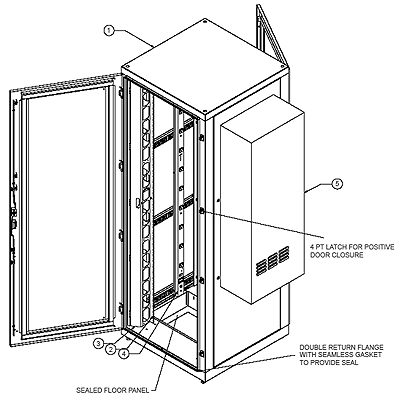

Sample Nema Cabinet Configuration (All items sold separately)

Double return flange with seamless gasket 4 point latch closure

Double return flange with seamless gasket
4 point latch closure

4 point latch installed on door, door ajar showing closures

4 point latch installed on door, door ajar showing closures

Sealed floor panel

Sealed floor panel

4 point latch, view of inside of door, top portion

4 point latch, view of inside of door, top portion

View of inside door showing 4 point latch mechanism, and flange, gasket and closure on frame

View of inside door showing 4 point latch mechanism, and flange, gasket and closure on frame

NEMA Cabinet

Product Features:

Finish

  • Durable black textured powder paint finish



Structure

Frame constructed of rugged 11GA steel
To maintain dust free environment, cabinet comes standard with:

  • Double return flange with seamless gasket to provide seal with doors

  • 4 point latch securely closes and locks door to frame

  • The bottom of the cabinet is sealed by using one of two items:

    • flat floor panel attaches to mounting plates and comes standard

    • sealed floor panel (box shaped) attaches to mounting plates and rests on floor. This panel allows for cable access & is sold separately.

  • Side panels bolted in 4 places



Cabinet assembly will include a solid front and rear door, one solid side panel and two side panels.



Air condition unit will be factory installed.



If no air condition unit is required, two solid side panels can be supplied.



Options



NEMA cabinet frames support the CableTalk products:

  • Mounting angles – tapped or cage nut style

  • Cable management systems

  • Power solutions

  • Shelves

  • A/C versions available in 4000, 8000 & 12000 BTU

CSA logo
UL Listed

Nema 12 Cabinet Assembly
