Ganged Rack Solutions - Reference Tool

Suggested bill of materials requirements for high density ganged racks:

When Ganging 1 Rack

Black and white CAD diagram of a single rectangular rack as a ganged solution.

When Ganging 2 Racks

Black and white CAD diagram of two parallel rectangular racks as a ganged solution.

When Ganging 2 Racks, w/ end mount chimney

Black and white CAD diagram of two parallel rectangular racks with a mounted chimney at the end as a ganged solution.

To mount a chimney on the end of an installation, the chimney (CTR-EXT-24-B) replaces an end cap (CTH-CMT-EC-B)

When Ganging 2 Racks, w/ mid mount chimney

Black and white CAD diagram of two parallel rectangular racks with a mounted chimney in the center as a ganged solution.

To mount a chimney on the interior of an installation, the chimney (CTR-EXT-24-B) replaces a ganging plate (CTH-CMT-GP-B)

When Ganging 3 Racks

Black and white CAD diagram of three parallel rectangular racks as a ganged solution.

When Ganging 4 Racks

Black and white CAD diagram of four parallel rectangular racks as a ganged solution.

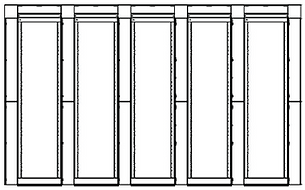

When Ganging 5 Racks

Black and white CAD diagram of five parallel rectangular racks as a ganged solution.

When Ganging 6 Racks

Black and white CAD diagram of six parallel rectangular racks as a ganged solution.

When Ganging 7 Racks

Black and white CAD diagram of seven parallel rectangular racks as a ganged solution.
